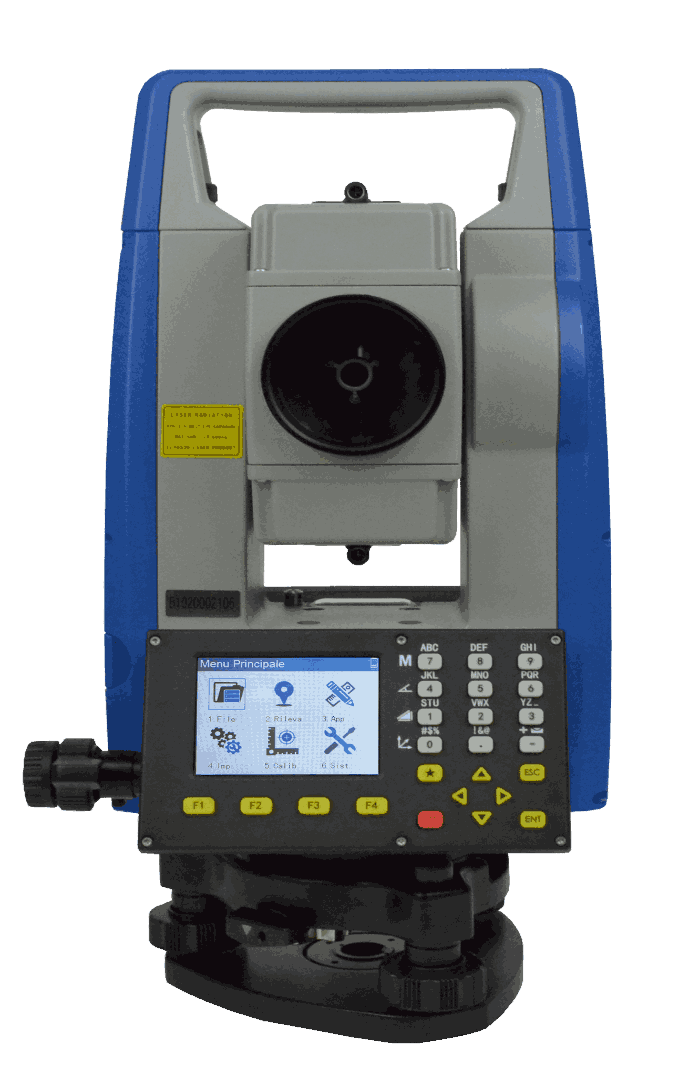

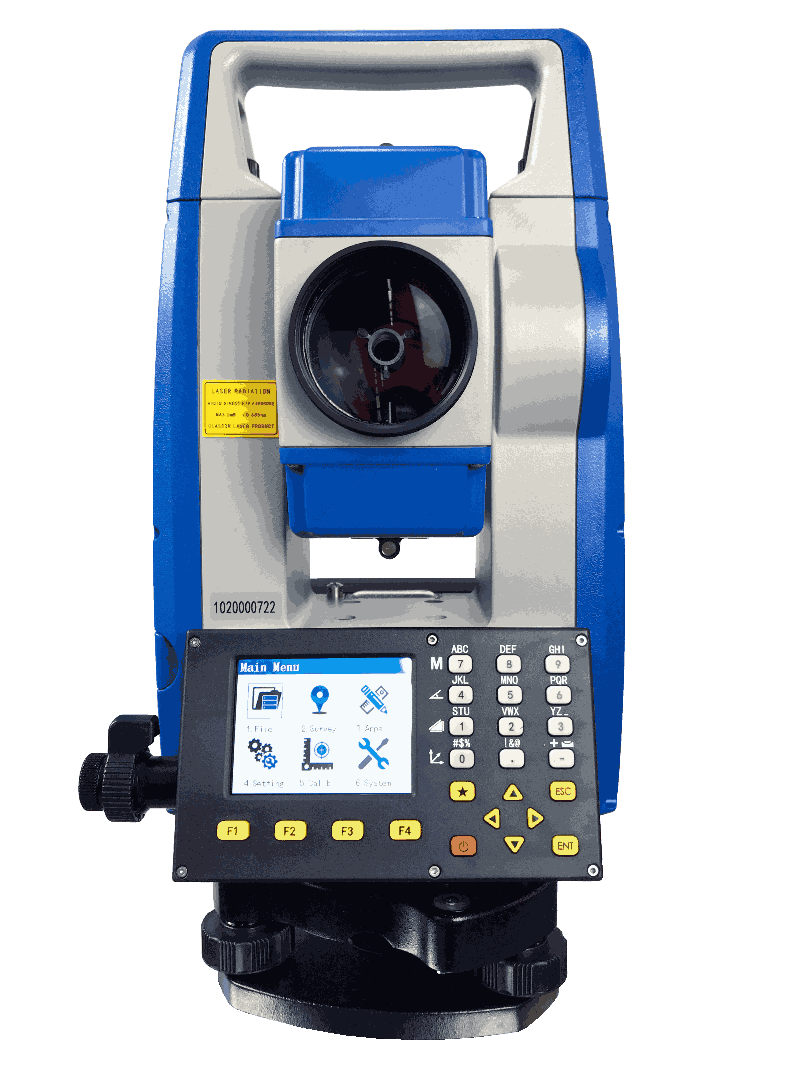

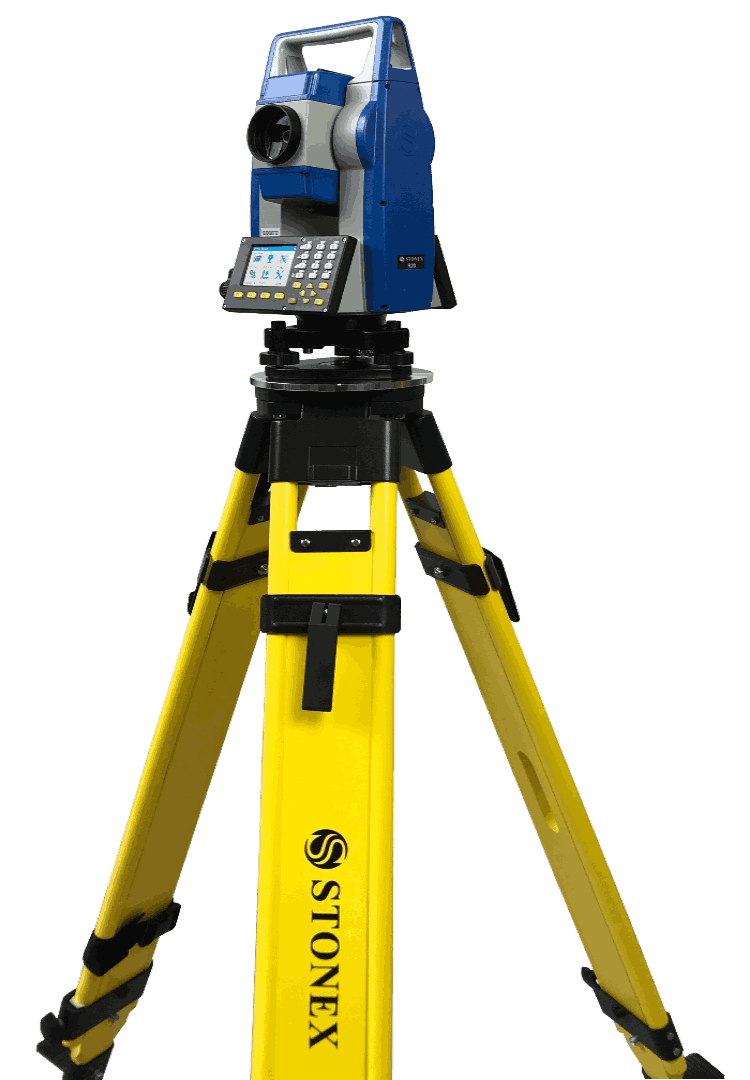

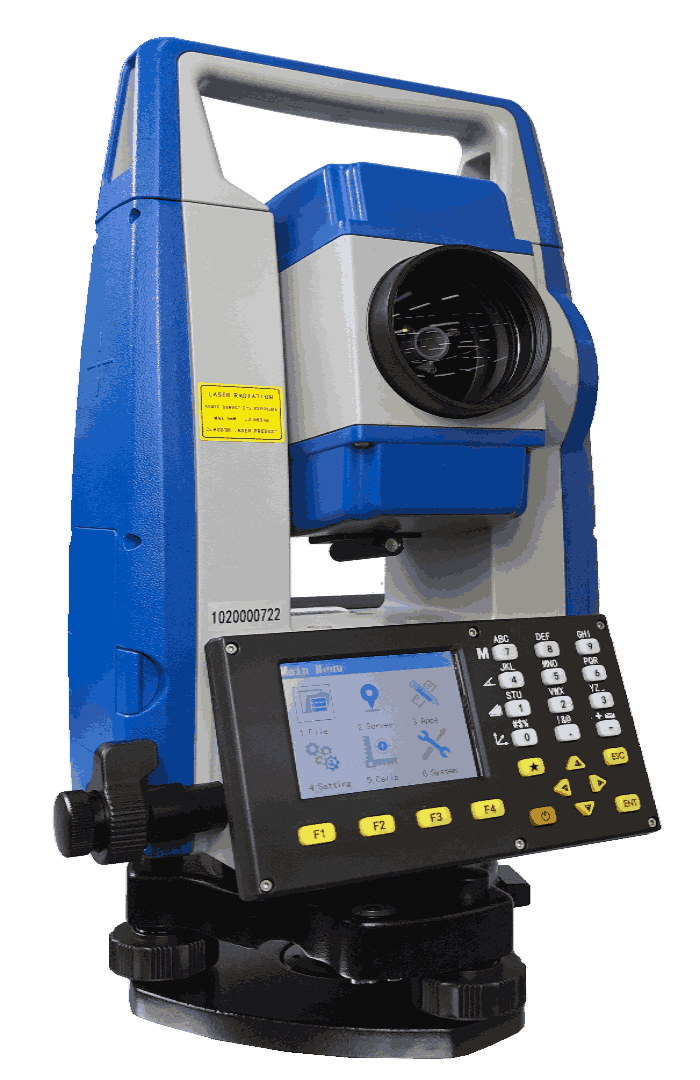

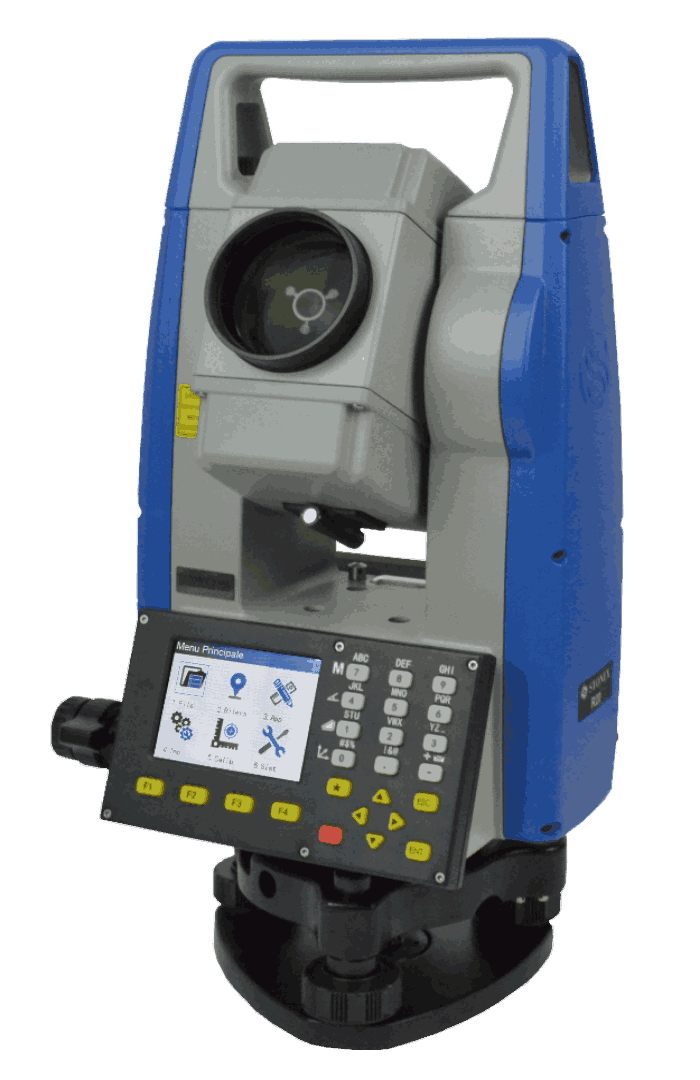

R20 Total Station

Name: R20 Total Station
Brand: Rowad Survey
Availability: InStock

Precise, Efficient and Easy

The R20 range is composed of 3 versions, the R20 1000m model with 2″ angular accuracy, the R20 1000m model with 1″ angular accuracy and the R20 600m model with 2″ angular accuracy. The three models offer optimum performance up to 5000 m with prism and 1000 m or 600 m reflectorless. The entire R20 range is equipped with a high-performance, illuminated reticle telescope that provides the best quality of observation, whatever the environmental conditions. The programs on board of these models of total stations make them suitable for any work in construction, cadastral, mapping and staking, through a user-friendly interface. Thanks to the presence of Bluetooth connection, it is possible to connect an external controller, giving the possibility to use a customized field software.

Features

TEMPERATURE PRESSURE SENSORS

Variations in temperature and pressure have a negative impact on the accuracy of distance measurements. R20 allows setting the values of temperature and pressure to ensure the precision of distance measurements.

LIMITLESS DISTANCE MEASUREMENTS

By using a digital phase laser ranging technology, R20 guarantees high accuracy measurements: 1000m or 600m (depending on the model) in reflectorless mode and up to 5000m using a single prism, with millimeter accuracy.

ONE DAY OF CONTINUOUS FIELD WORK

Thanks to the low power consumption circuit design R20 gives the opportunity to continuously work for more than 22 hours.

LOCK DRIVES & TRIGGER KEY

Ergonomic clamps and knobs to make target collimation fast and accurate using both the hands. Start the measure using the trigger key located on the side of the instrument.

FAST, ACCURATE, RELIABLE

Measuring distances with high angular accuracy make any job extremely cost effective and reliable. The wide range of application software allows to complete the Surveyor’s tasks directly in the field.

EASY CONNECTIVITY

Quick import & export of data through a USB dongle. A Bluetooth connection enables the R20 to comunicate with a handheld device, giving the possibility to use a custom field software, such as Stonex Cube-a.
